Performance solutions for your Caterham

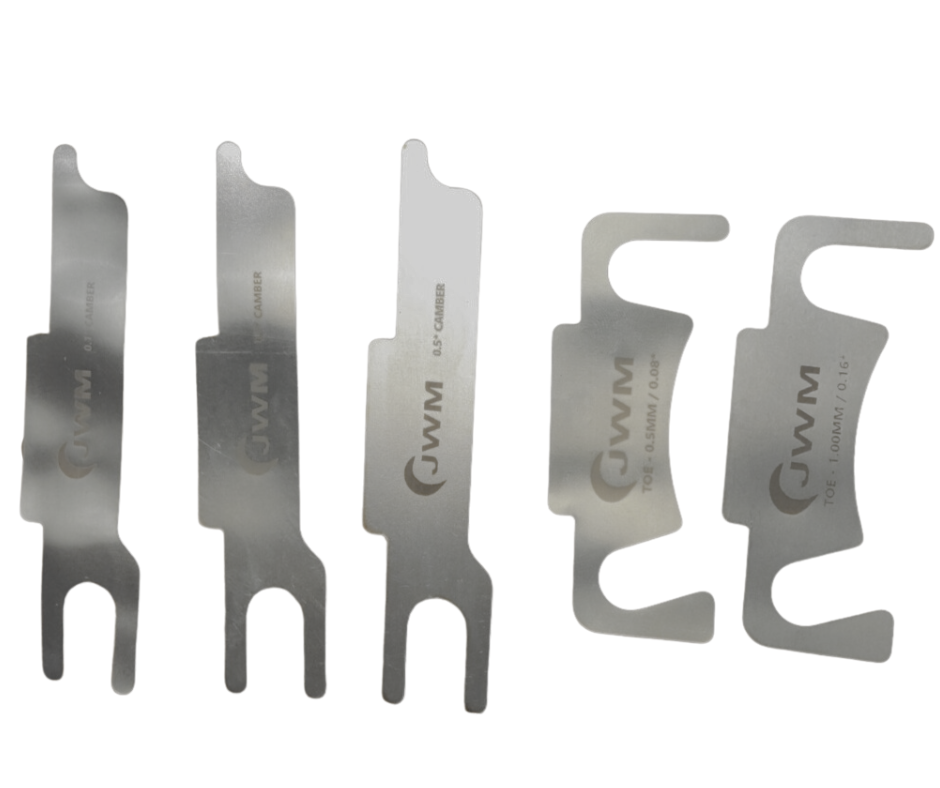

The JWM De-Dion shim set has been developed to allow the fine tuning of rear toe and camber angles for S3 and S5 Caterham Sevens. Use of these camber and toe shims can make a marked difference on the handling characteristics of your car, to fine tune behaviour through turn in, mid corner and corner exit. It can also be used to combat unequal tyre wear, something particularly important on road cars.
These shims are designed for rapid setup changes, and can be added/removed without the need to fully loosen or remove any bolts, they simply slide into position. Ideal for quicker flat floor setups, or fine tuning whilst trackside.
Camber shims have the ability to adjust camber in steps of 0.1, 0.2 and 0.5 degrees, to provide enough flexibility to reach the optimal camber angle. Toe shims are able to provide 0.5mm and 1.0mm (or 0.08° and 0.16°) adjustments, assuming use of a 13" rim. Two shims of each type are included in the kit.
NOTE: NOT FOR USE ON CAST DE-DION EARS AS FOUND ON EARLIER CARS, OR CARS RUNNING IN THE CATERHAM MOTORSPORT CHAMPIONSHIPS.
