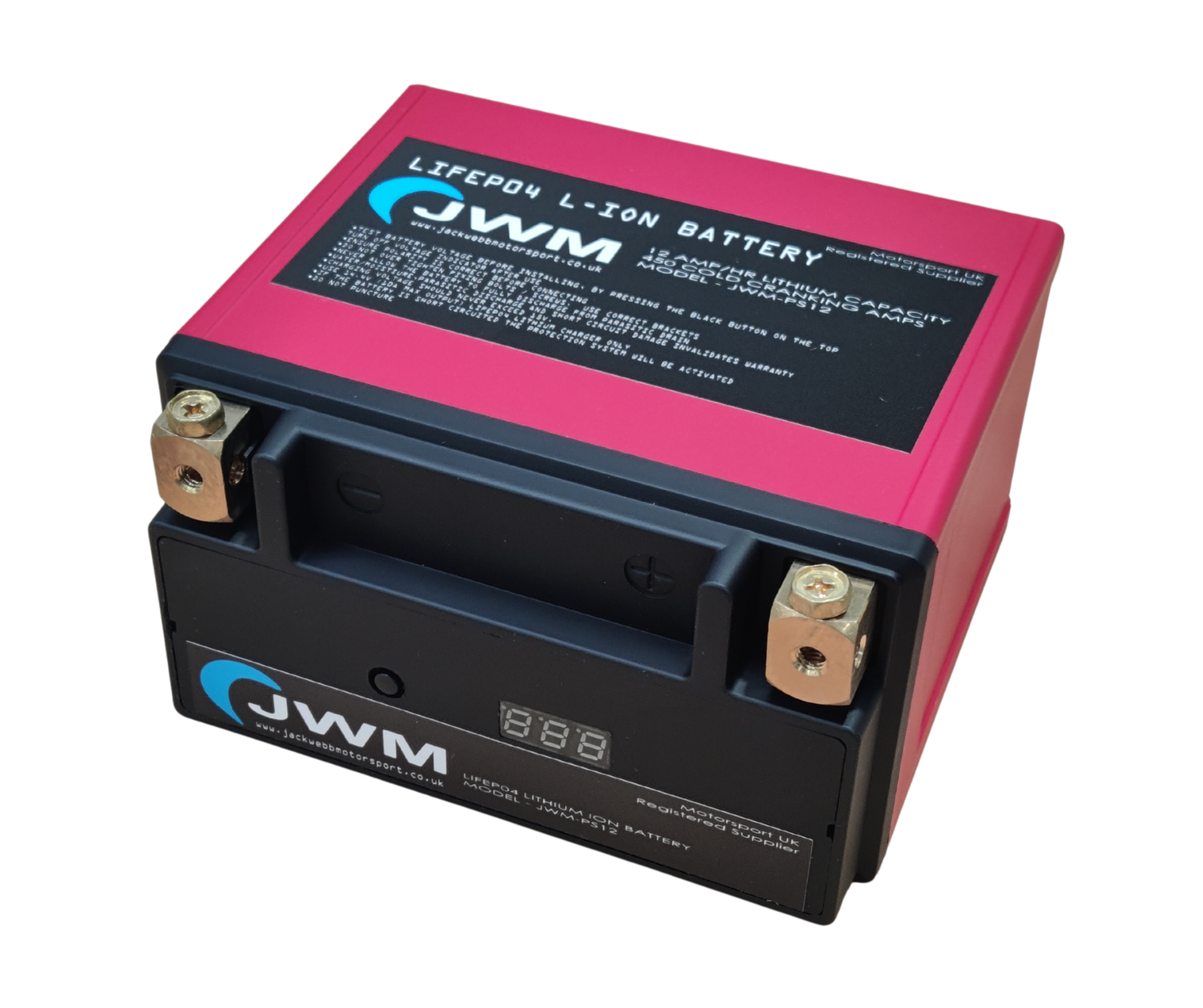

We are the cheapest supplier of Motorsport UK Registered LiFePO4 batteries in the UK. Our batteries are the latest version, utilising the newer more advanced battery management, not older discontinued old stock sold by our competitors.
Extremely compact the Battery Only Requires only 1/3 of the Space of a standard Caterham 53034 Banner battery and is only 19% of the weight!
For race and track day lightweight cars such as Caterhams. Recommended for all Caterhams and similar cars, except bike engine cars and V6 or V8 Levante models.
This battery model has been tested and found to meet the power demands of our own Caterham which has an electric pneumatic pump for paddleshift and heated seats, together drawing 28 amps.
It will be fine in any other Caterham except the specific models mentioned above for which the PS-20 is recommended.
For Lotus Elise, please choose PS-20.
Extremely Powerful for its size - 420A cold cranking
Rapid Recharge: Recharges far faster than a conventional battery. Retains charge when isolated for up to 2 years.
Safe: Unlike other lithium batteries JWM batteries are internally inert, do no run warm and do not leak as they contain no liquids. You can even install them upside down!
JWM batteries are equipped with electronic systems to protect against overcharging, over discharging and short circuit.
Voltage - 12.8v
Capacity - 12Ah (36Ah PbEq)
Cold Cranking Amps - 420
Size (mm) (W x D x H) - 150 x 130 x 87 (Height is measured when battery is laid on its side)
Weight 1.5kg (beware other manufacturer's similar batteries have the weight misquoted)
Please Note: Before fitting a LifeP04 battery of any brand you should ensure your charging system is in good order. Poor grounds in charging and internal alternator voltage regulator circuits can damage LifeP04 batteries. Also ensure your battery is positioned sufficiently far away from very hot engine components such as exhaust manifolds.
Be aware the digital display should be switched off when not in use to prevent battery discharge
